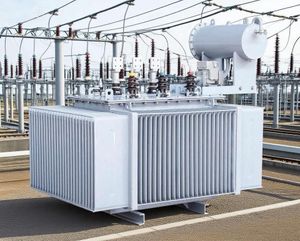

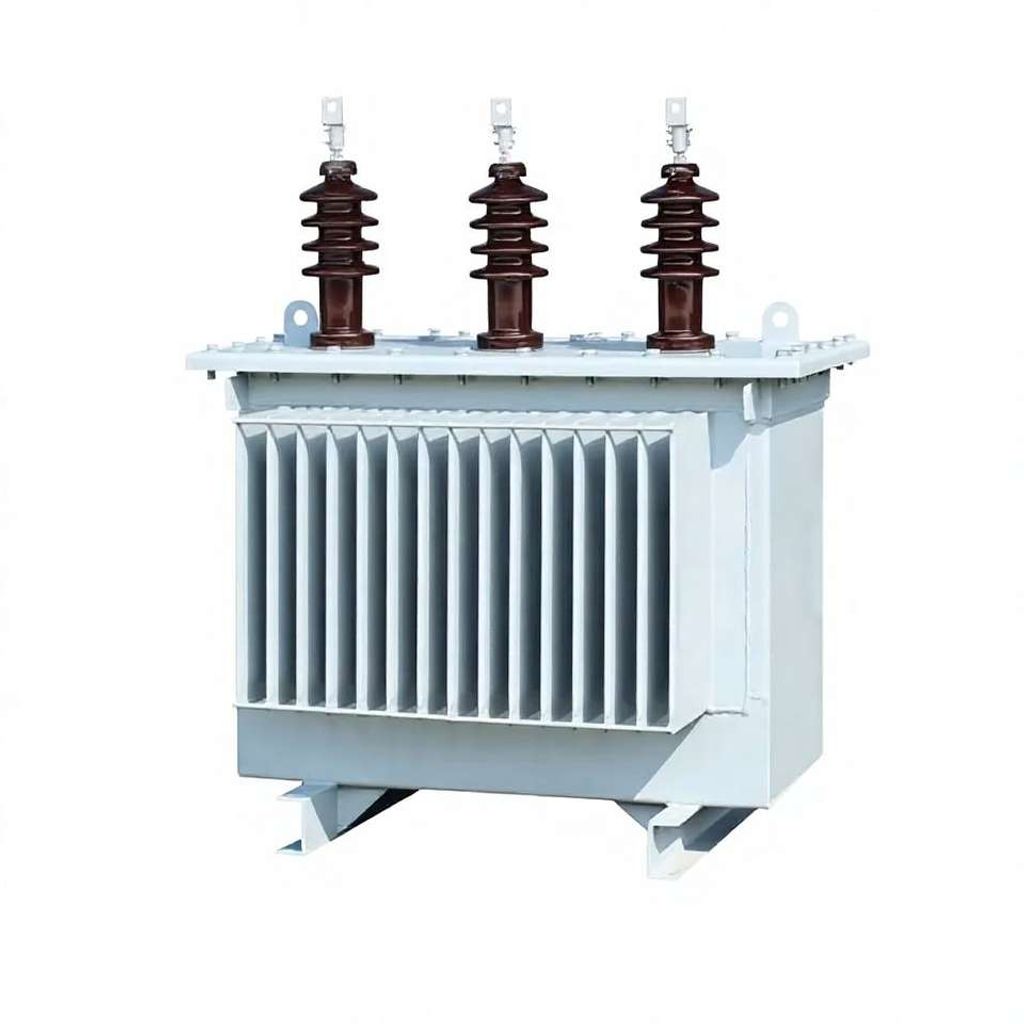

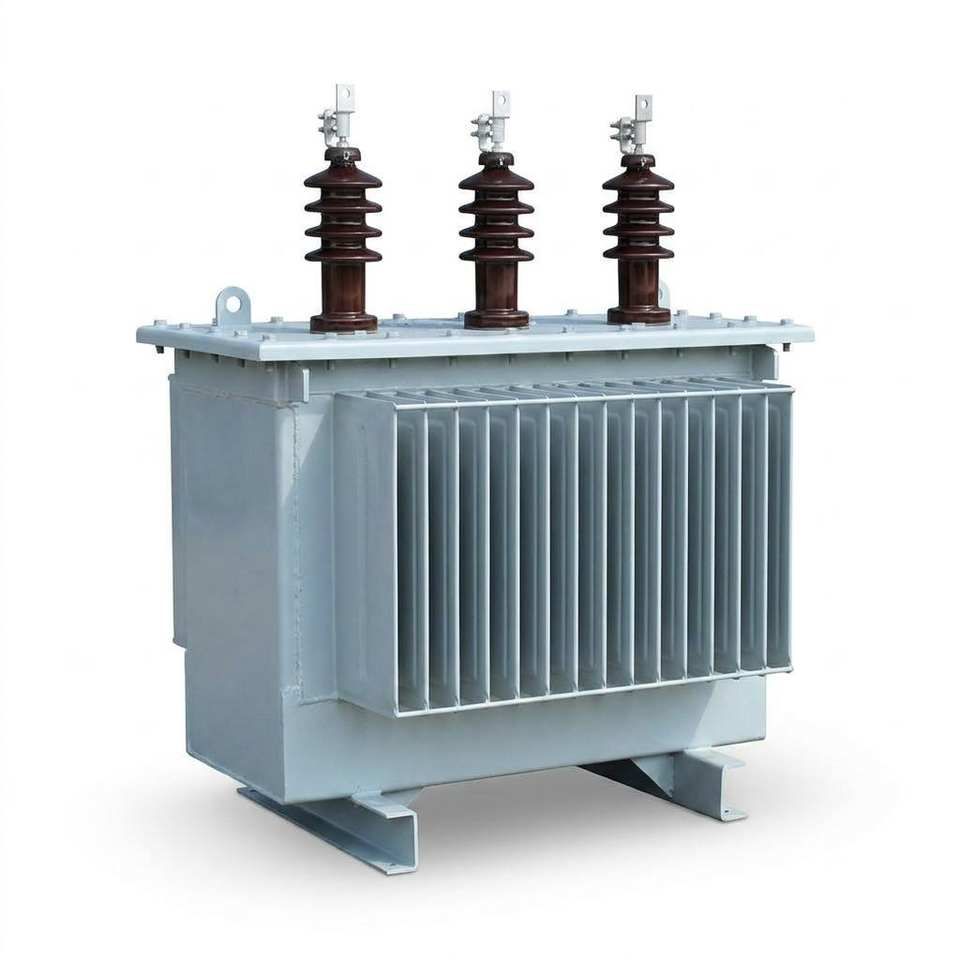

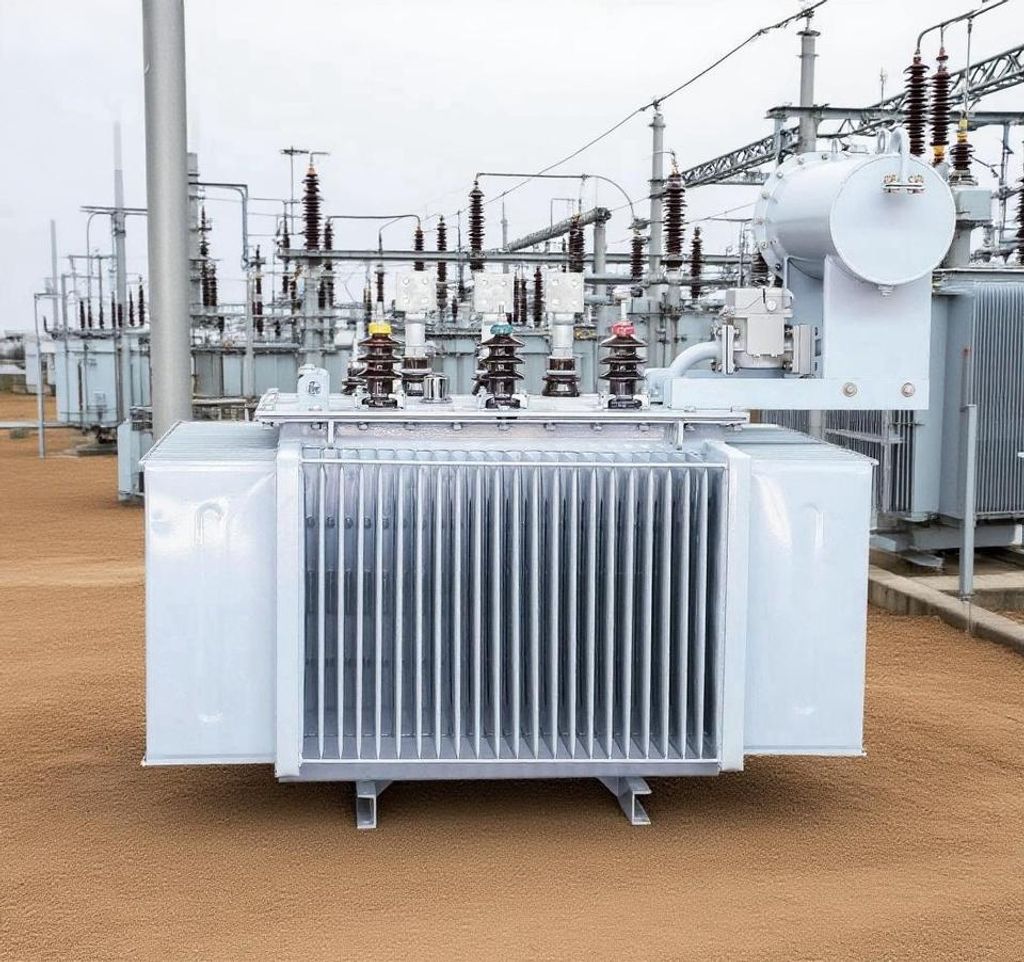

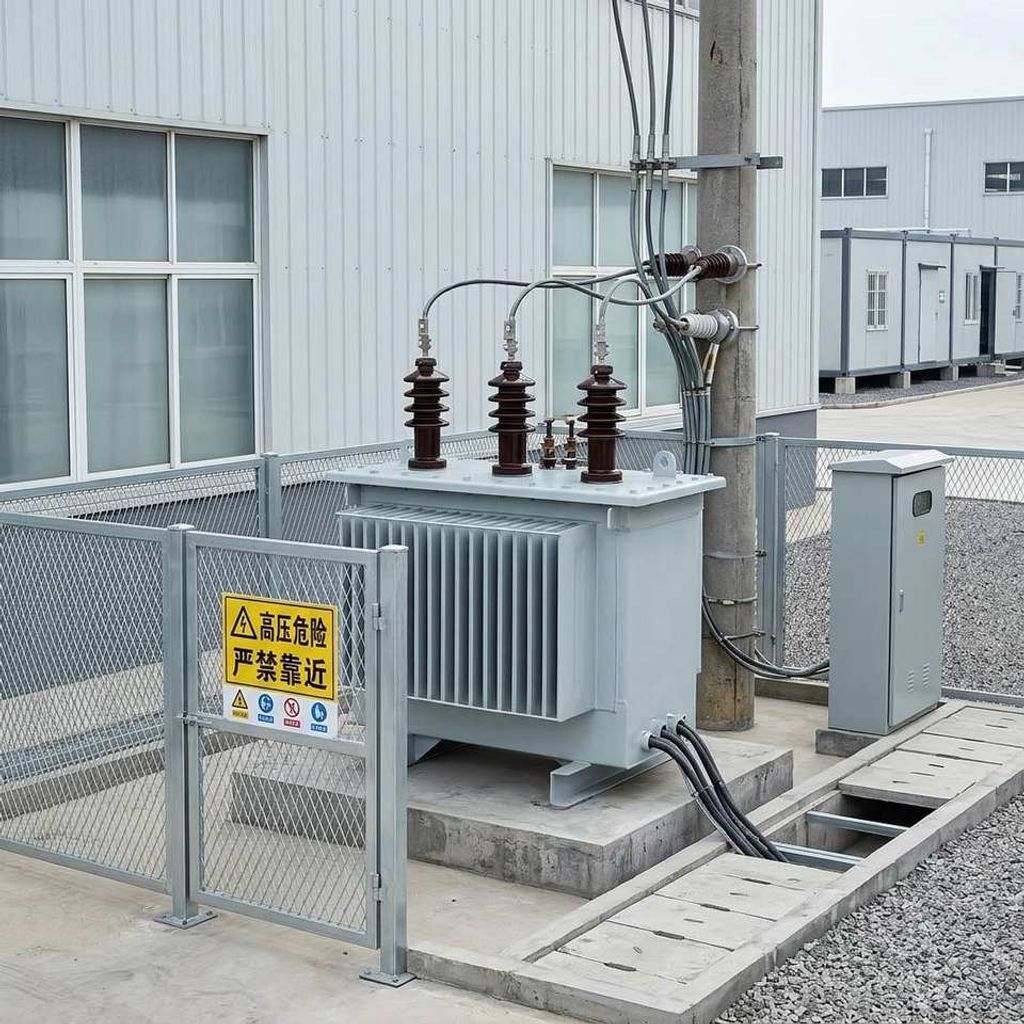

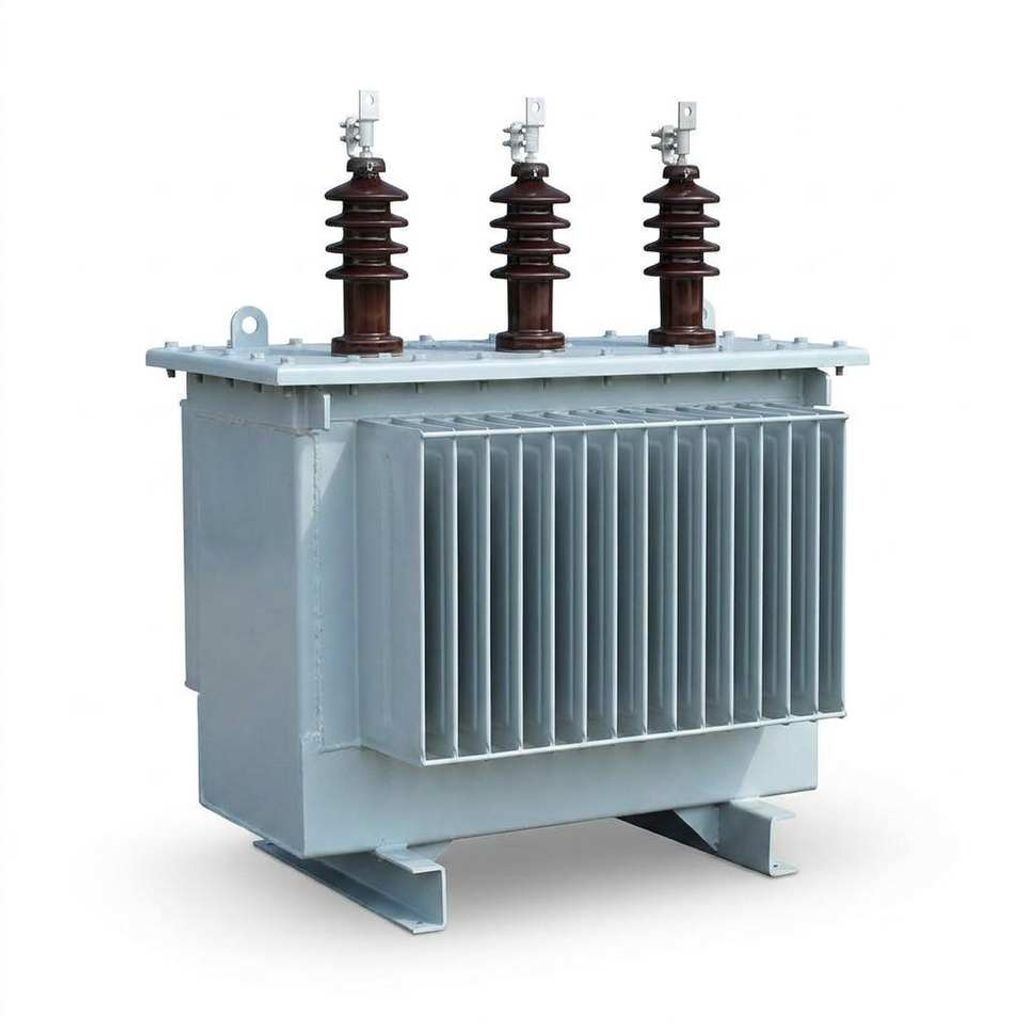

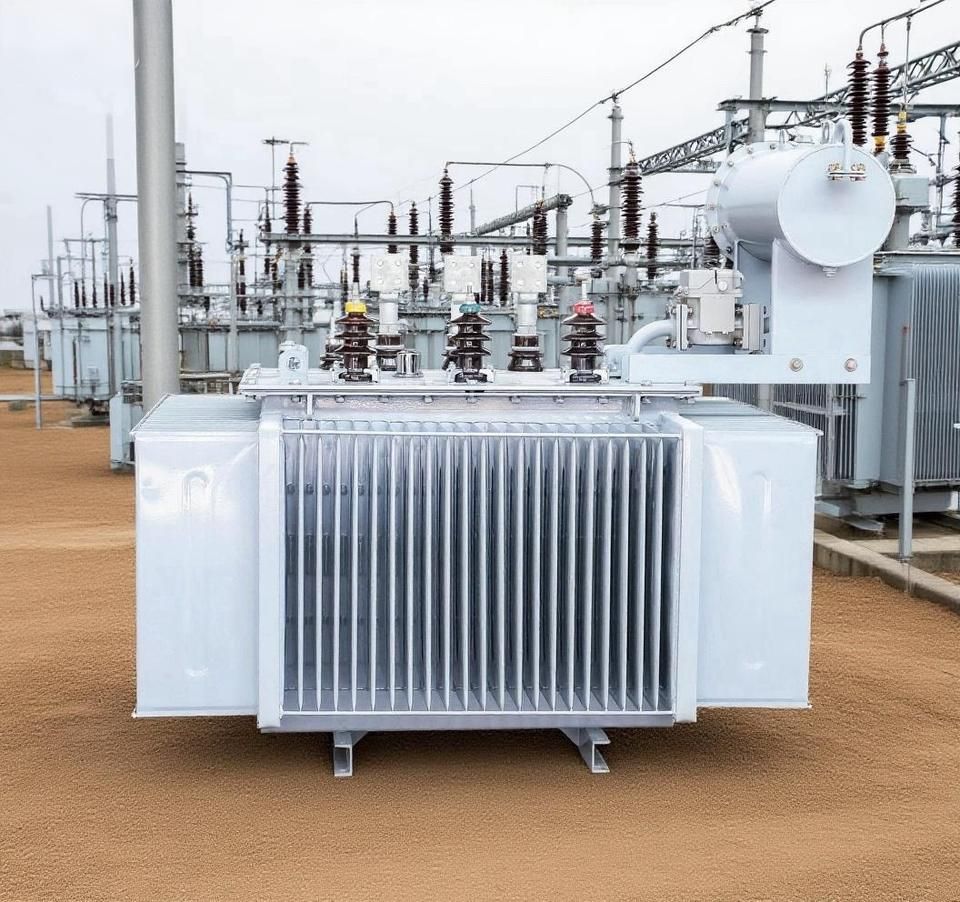

out side Three Phase Oil Immersed Transformer with power

Name: out side Three Phase Oil Immersed Transformer with power
Brand: yovolttrading
Price: 2300 USD
Availability: OutOfStock

save

Quantity

Free worldwide shipping

Free returns

Express delivery

Secure payments

Oil transformer

Highlights at a glance

Weather Resistance & Durability (Core Brand Advantage)

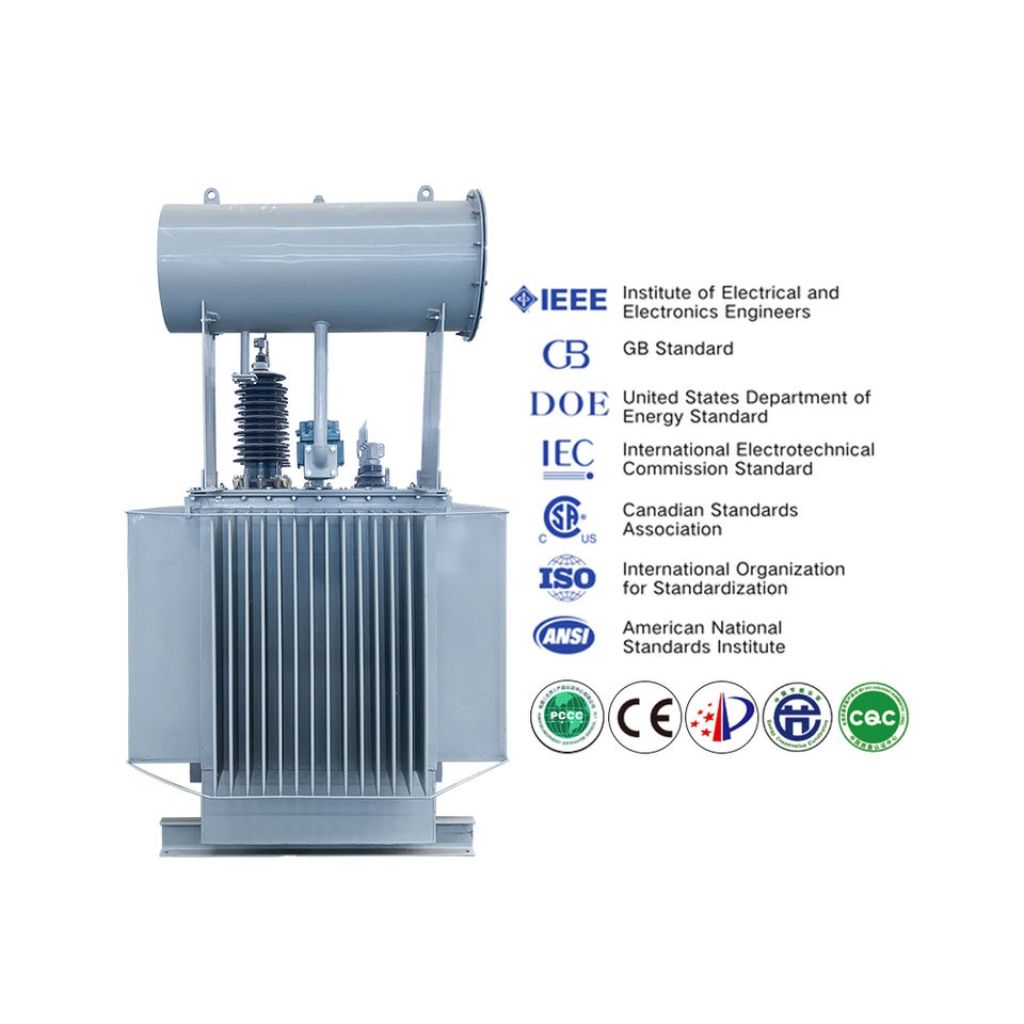

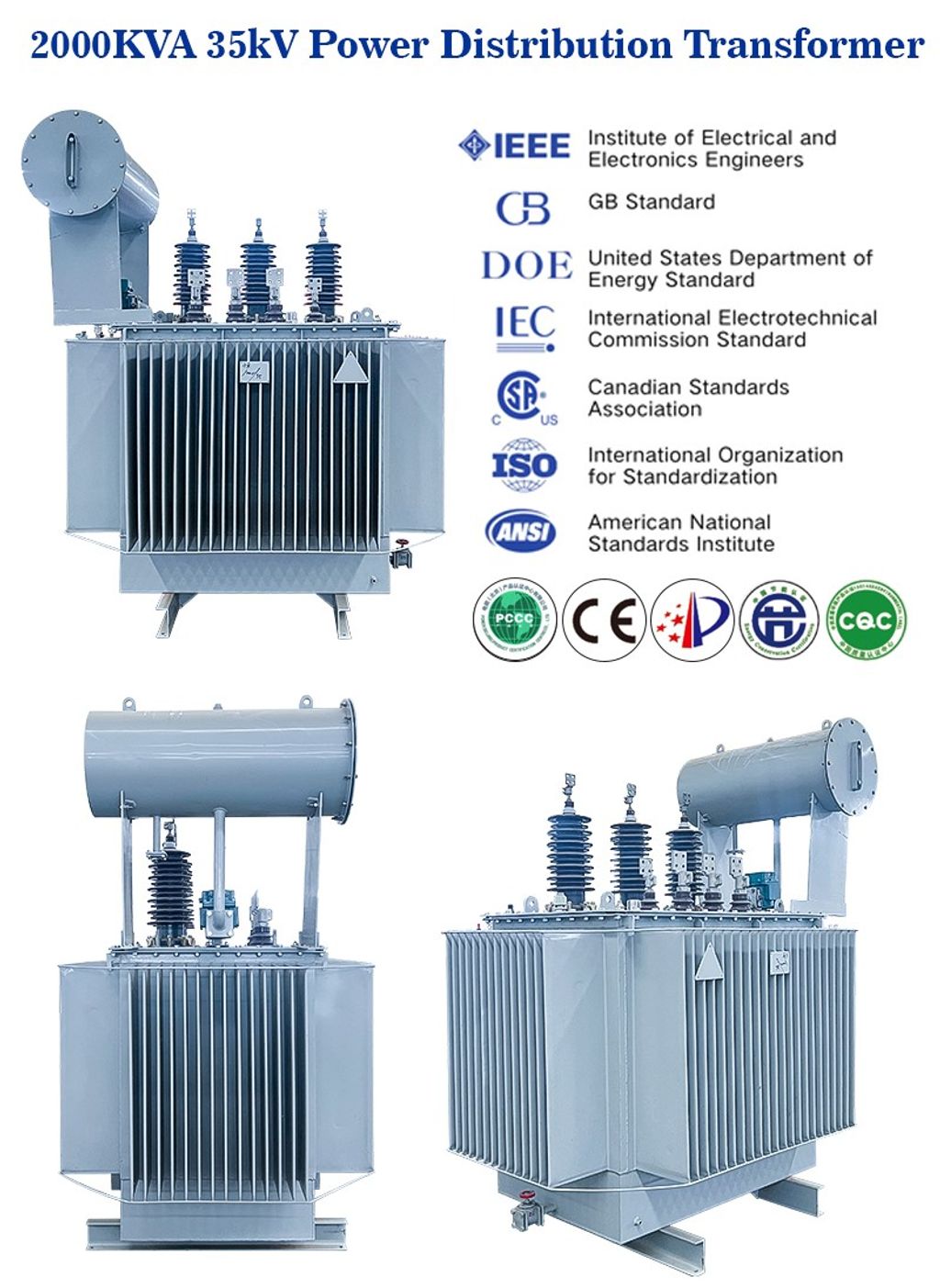

Exceeding International Standards

Low Noise & Compact Structure

Energy Efficiency & Core Performance

Safety & Anti-Leakage Design

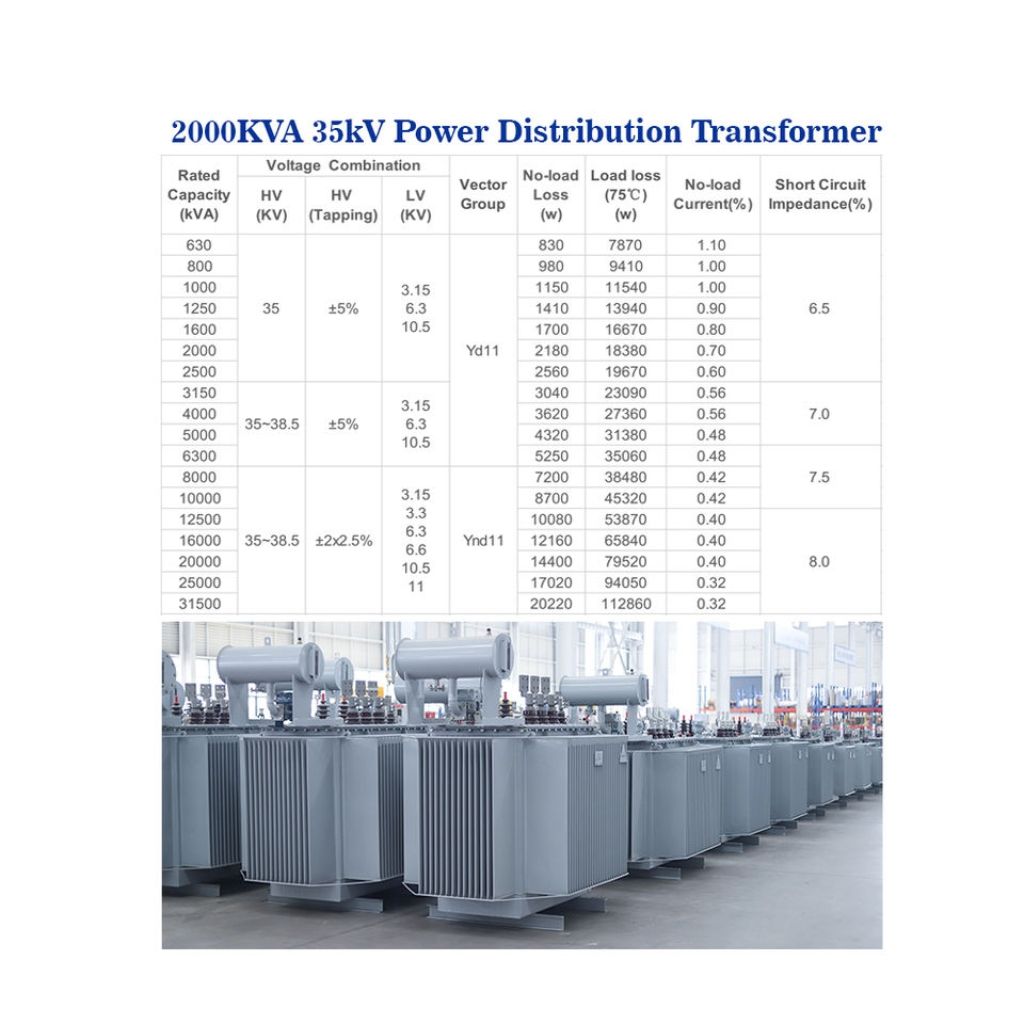

Specification

1. Rated Capacity: 10kVA ~ 2500kVA (customized available)

2. Primary Voltage: 10kV / 6kV

3. Secondary Voltage: 0.4kV (400V)

4. Frequency: 50Hz / 50/60Hz optional

5. Vector Group: Dyn11 (international standard)

6. Voltage Regulation: Off-circuit tap changer, ±2×2.5%

Loss Data

- No-load Loss: EU & national energy efficiency compliant

- Load Loss: Low consumption under full load

- No-load Current: ≤1.2%

- Impedance Voltage: 4% / 6%

Operation Conditions

- Cooling Type: ONAN (Oil Natural Air Natural)

- Max Winding Temperature Rise: ≤60K

- Insulation Class: Class A

- Ambient Temperature: -40℃ ~ +45℃

- Applicable Altitude: ≤1000m

Structure & Safety

- Enclosure: Sealed steel, anti-rust & anti-leakage

- Protection Class: IP03

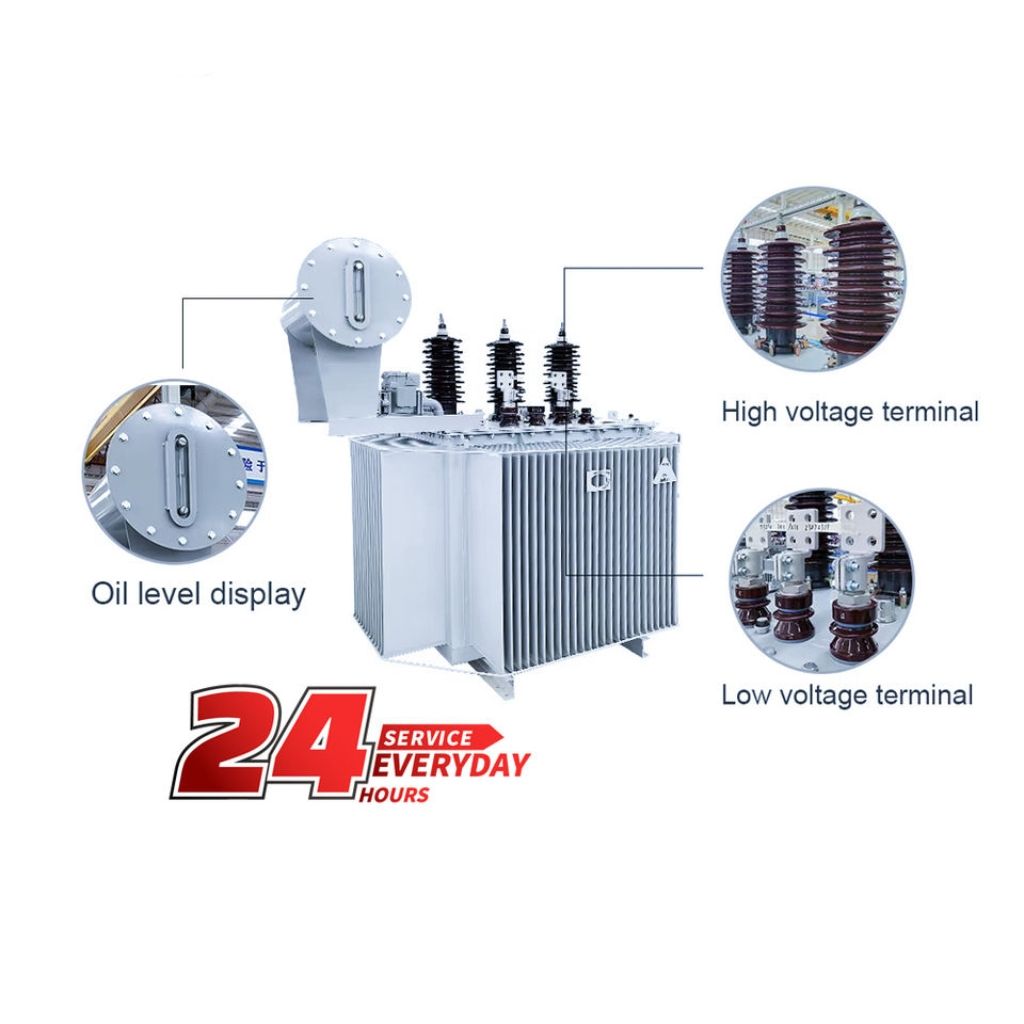

- Accessories: Radiators, conservator, breather, pressure gauge, drain valve,

earth terminal

Key Configurations

1. Copper winding (standard version)
Pure copper coils ensure excellent conductivity, low heat, strong overload & short-circuit resistance, long life, and stable performance, ideal for global projects.

2. Aluminum winding (economy option)
Cost-effective for budget-conscious customers. Higher power loss, shorter lifespan.

We can produce either type as per your needs.
