Integrated Solar PV Box-Type Substation DC Combiner Inverter Power Transformer

Name: Integrated Solar PV Box-Type Substation DC Combiner Inverter Power Transformer
Brand: yovolttrading
Price: 8000 USD
Availability: OutOfStock

save

Quantity

Free worldwide shipping

Free returns

Express delivery

Secure payments

Box-type Solar Transformer

Description

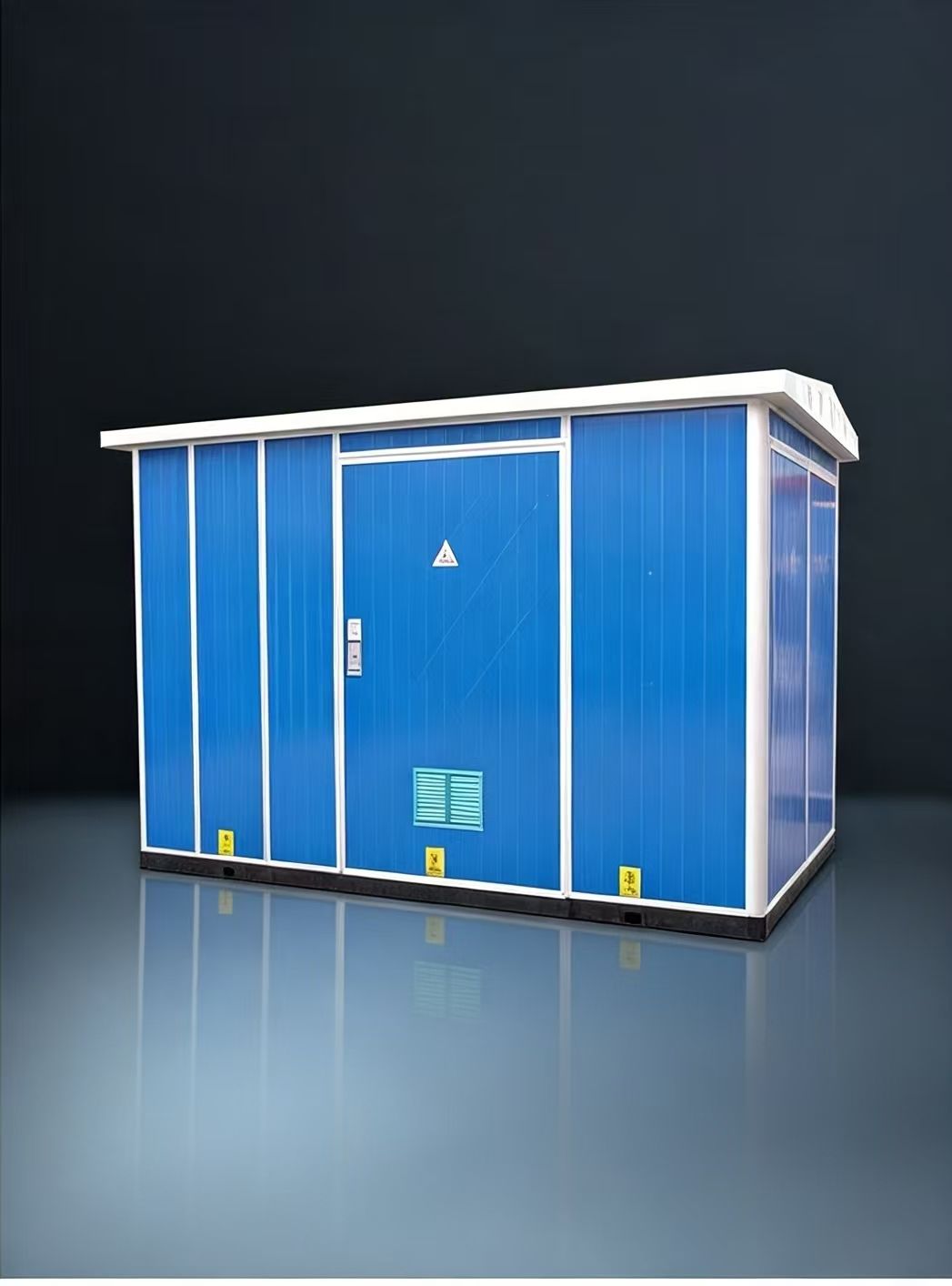

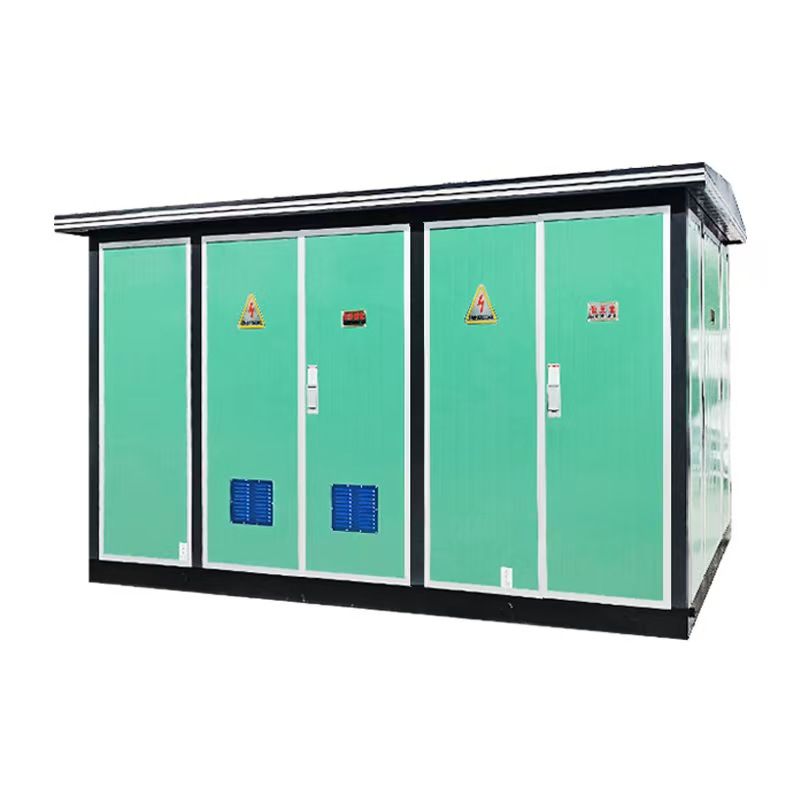

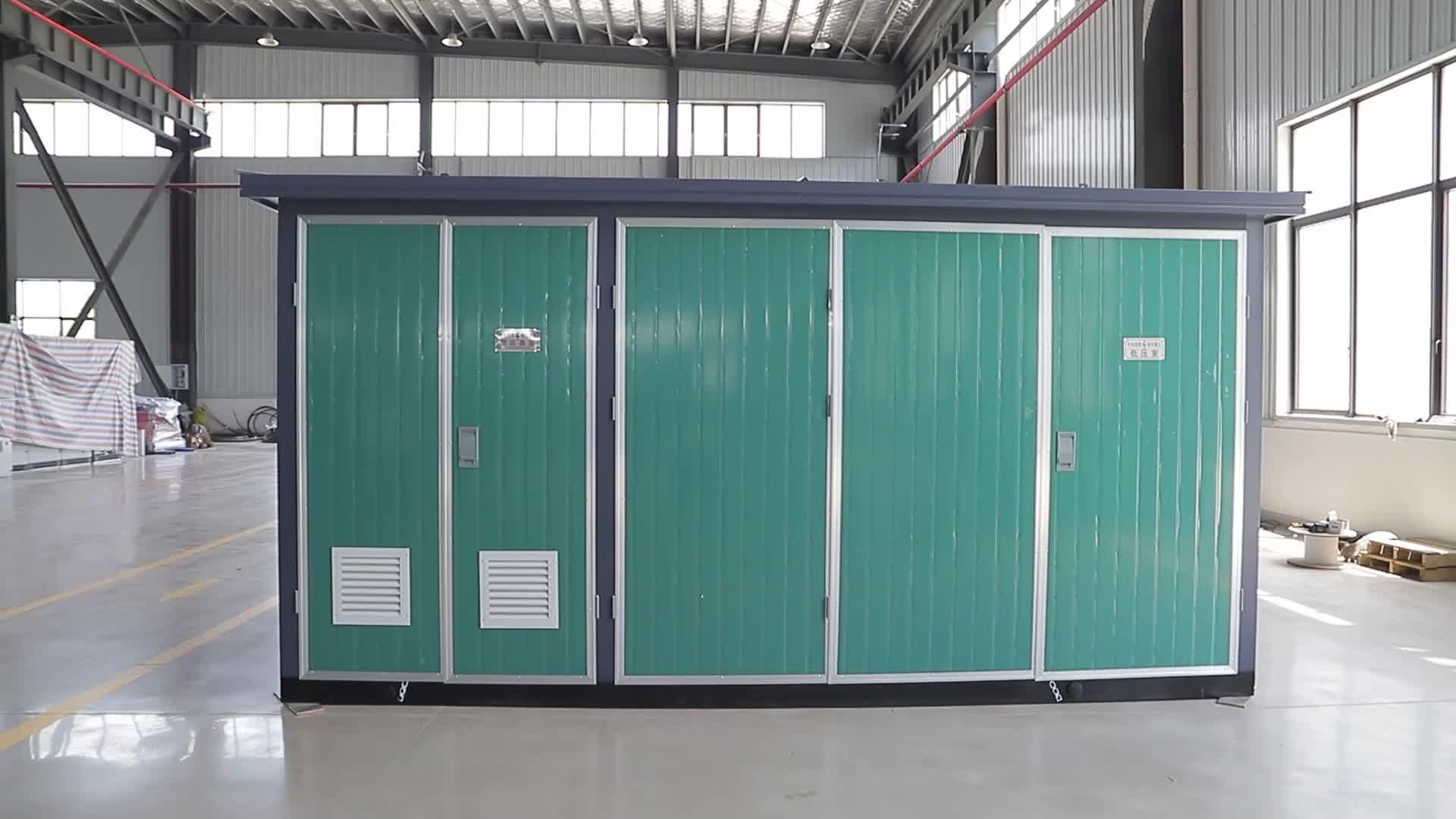

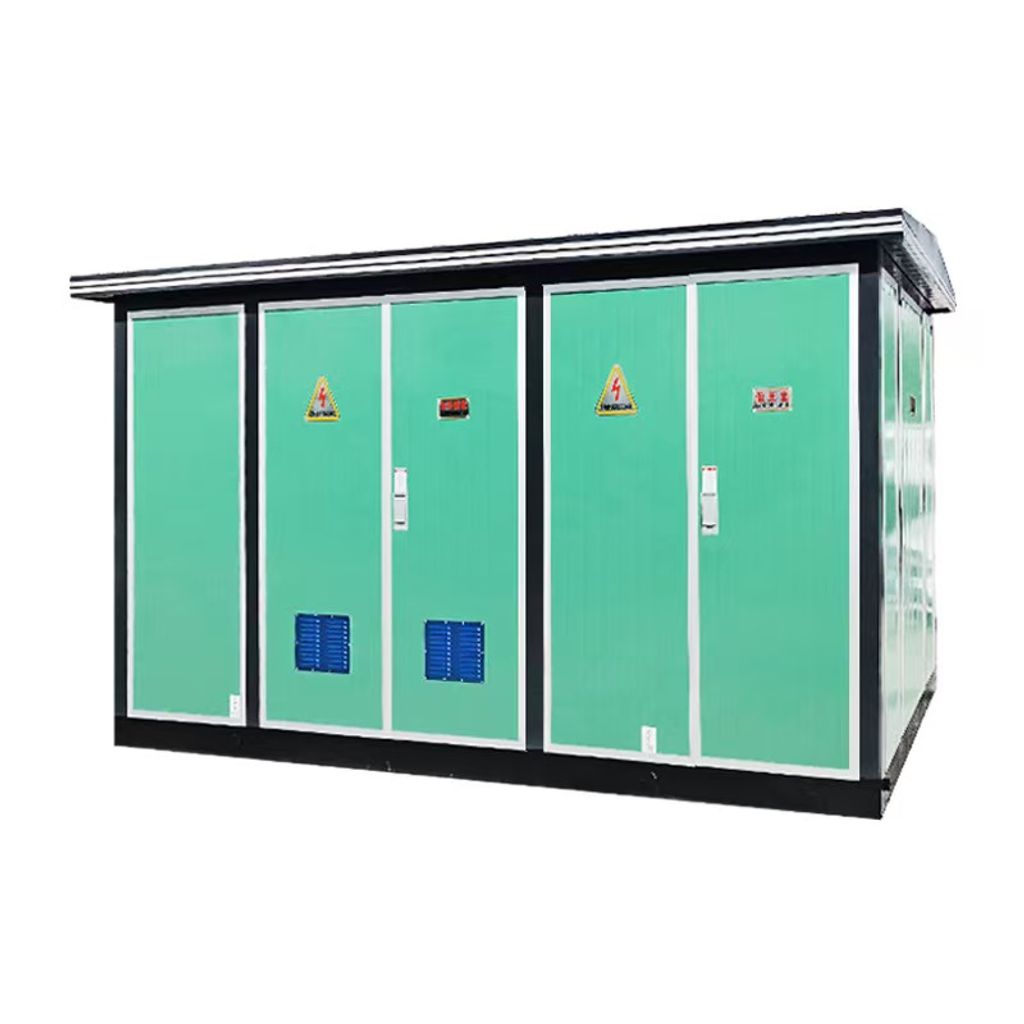

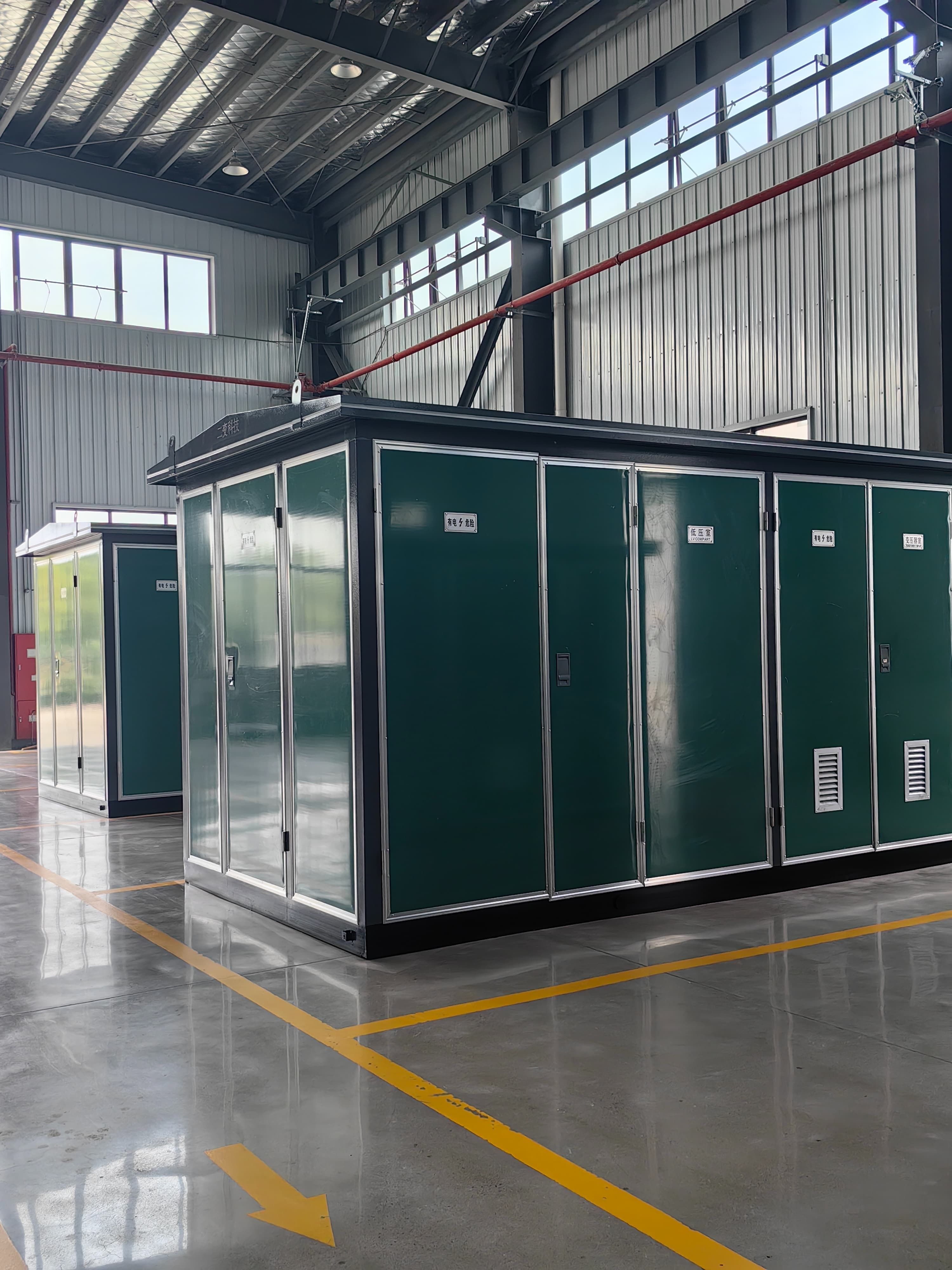

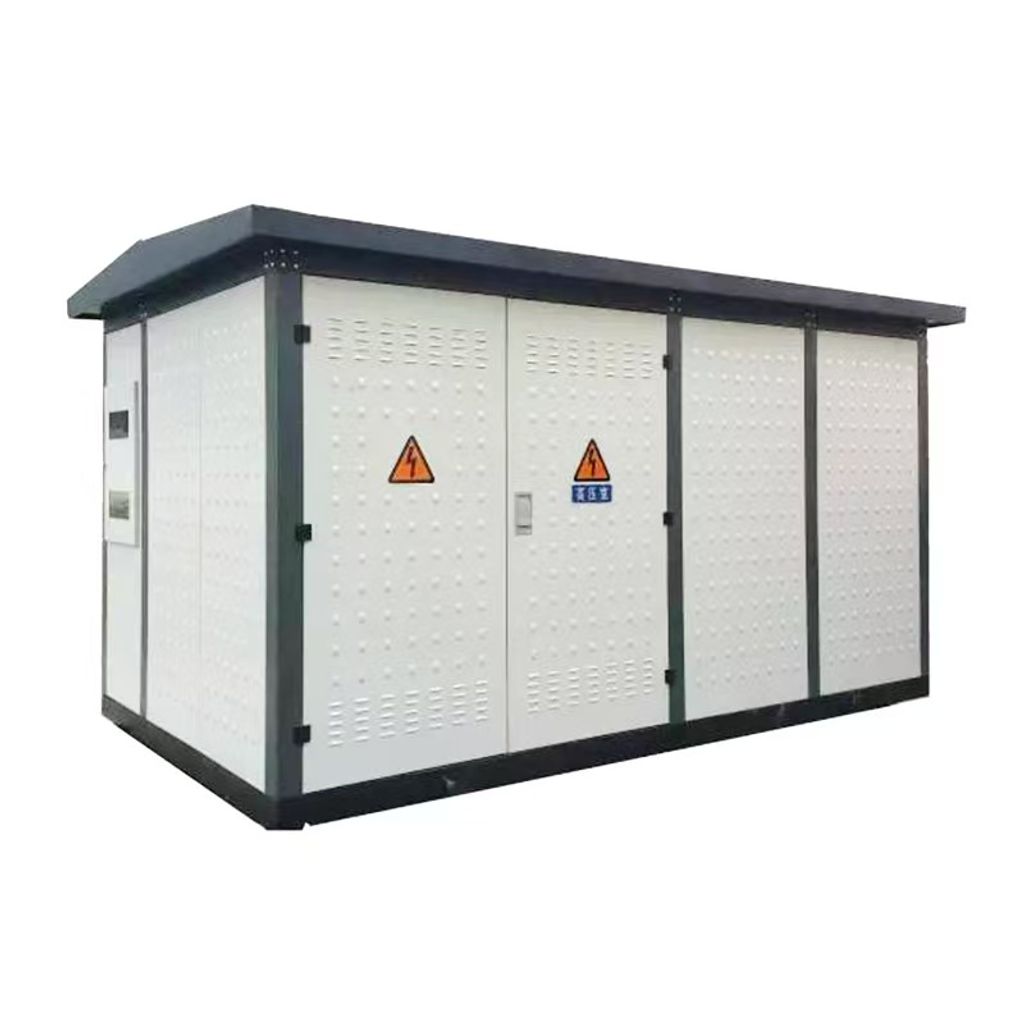

European-style three-compartment box-type transformer, 3-phase design with IP54 enclosure. Pre-fabricated complete unit for solar power system and DC charging station. Adopts full-copper winding with low energy loss, excellent anti-harmonic performance for fluctuating loads. Dust-proof, water-proof and salt-fog resistant for outdoor application. Complete protection functions, support intelligent monitoring, customizable parameters. Fast on-site installation, greatly reduces civil construction cost.

Specification

- European-style 3-phase box-type solar transformer, 800KVA / 1000KVA

- IP54 protection grade, suitable for outdoor solar & DC charging station

- Separated three-Compartment structure, safe and easy for maintenance

- Full-copper winding, low loss, strong anti-harmonic capability

- Factory pre-assembled, quick site commissioning

- Complete protection, intelligent monitoring available, custom solution supported

Key Configurations

Rated Capacity: 800KVA / 1000KVA
Phase: 3 Phase
Protection Grade: IP54
Cooling Method: ONAN
Vector Group: Dyn11
Insulation Class: F Class

Application:

Solar power system and DC charging station

Execution Standard: IEC 60076

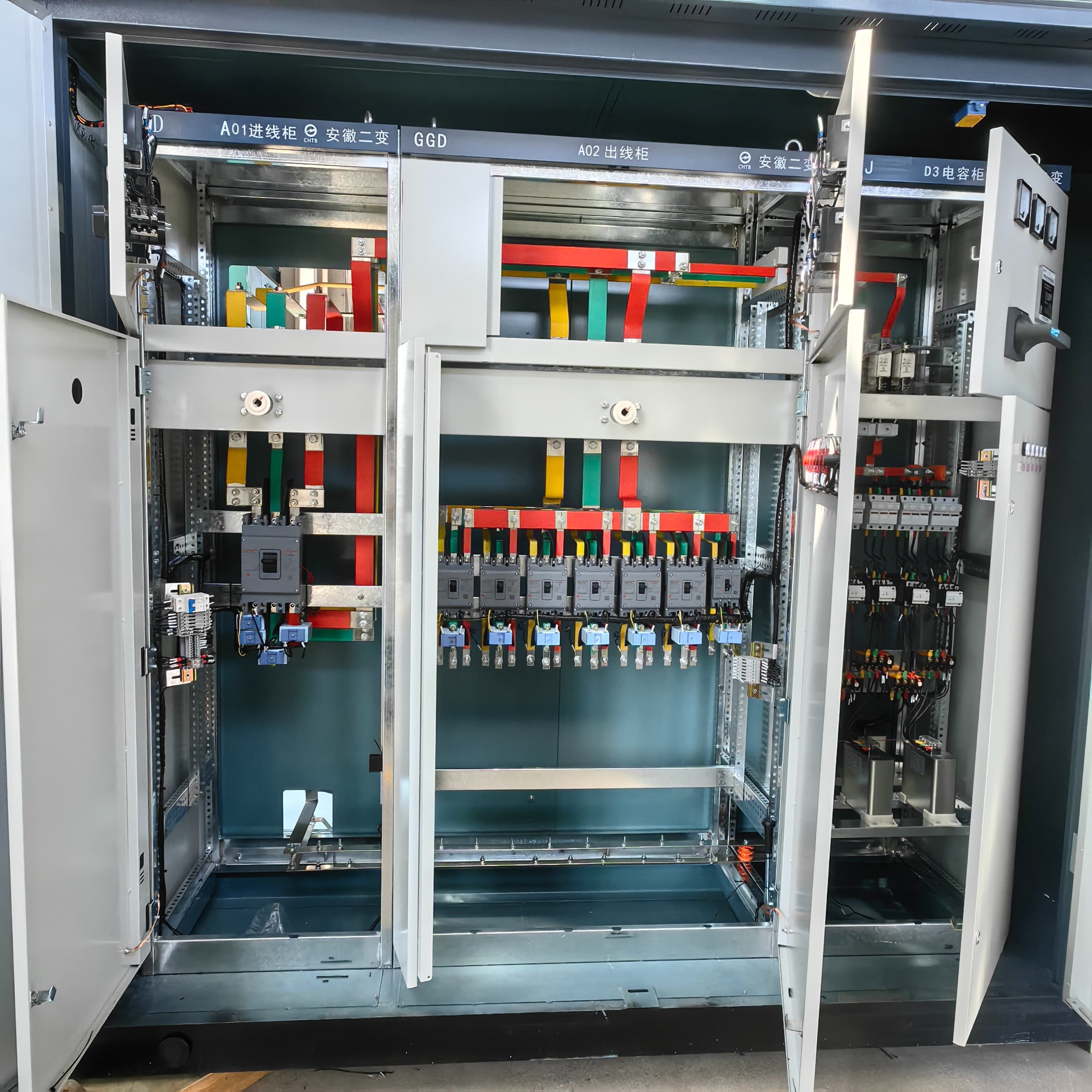

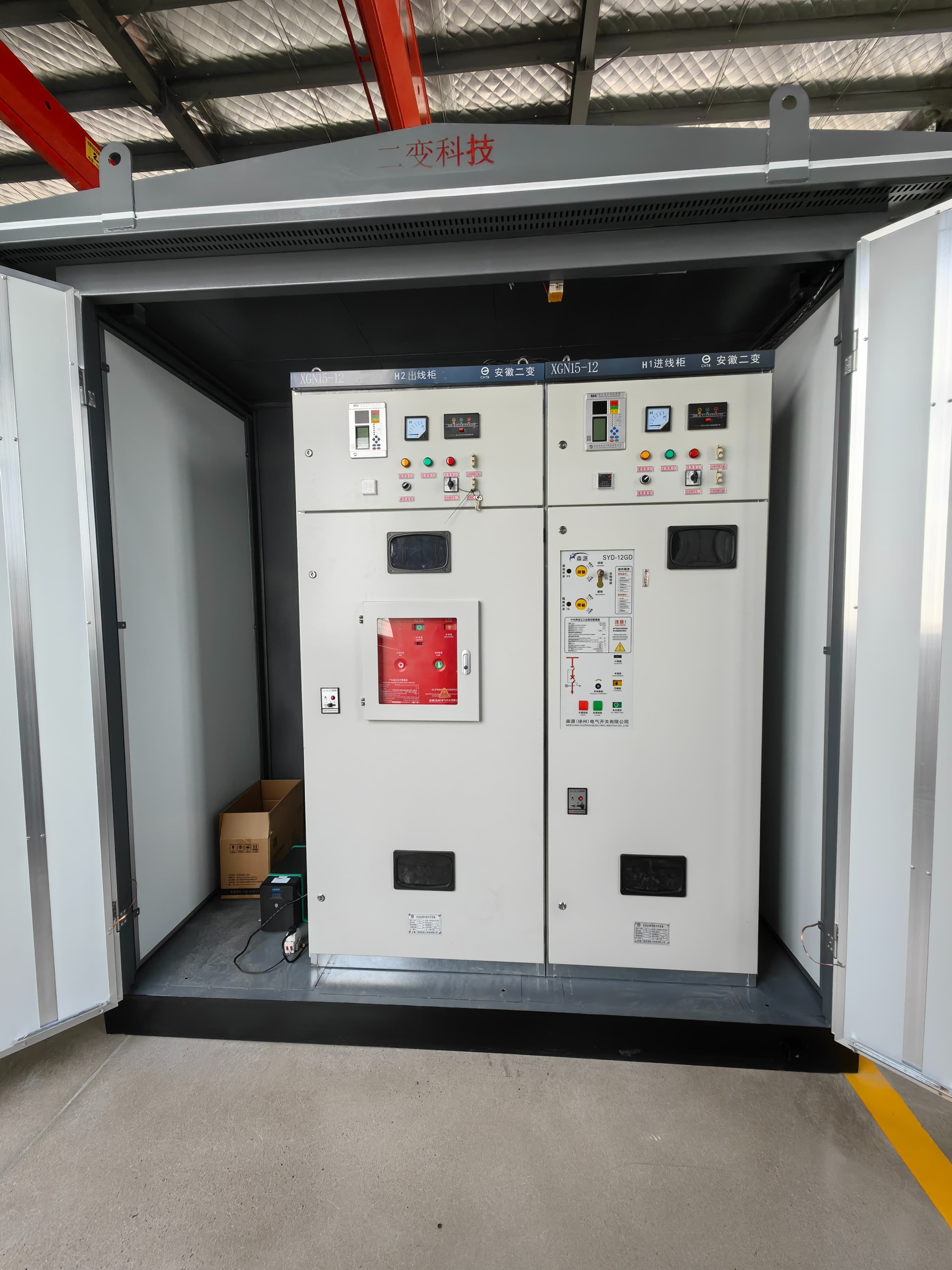

Adopts full copper winding, low loss and strong anti-harmonic performance, specially designed for solar and charging station fluctuating load. European-style three-compartment independent structure with high-strength steel cabinet. Equipped with high voltage switch unit, low voltage distribution and metering system. Built-in temperature monitoring, overload and short-circuit protection devices. Complete grounding system and internal lighting. Customizable voltage grade and protection functions.
