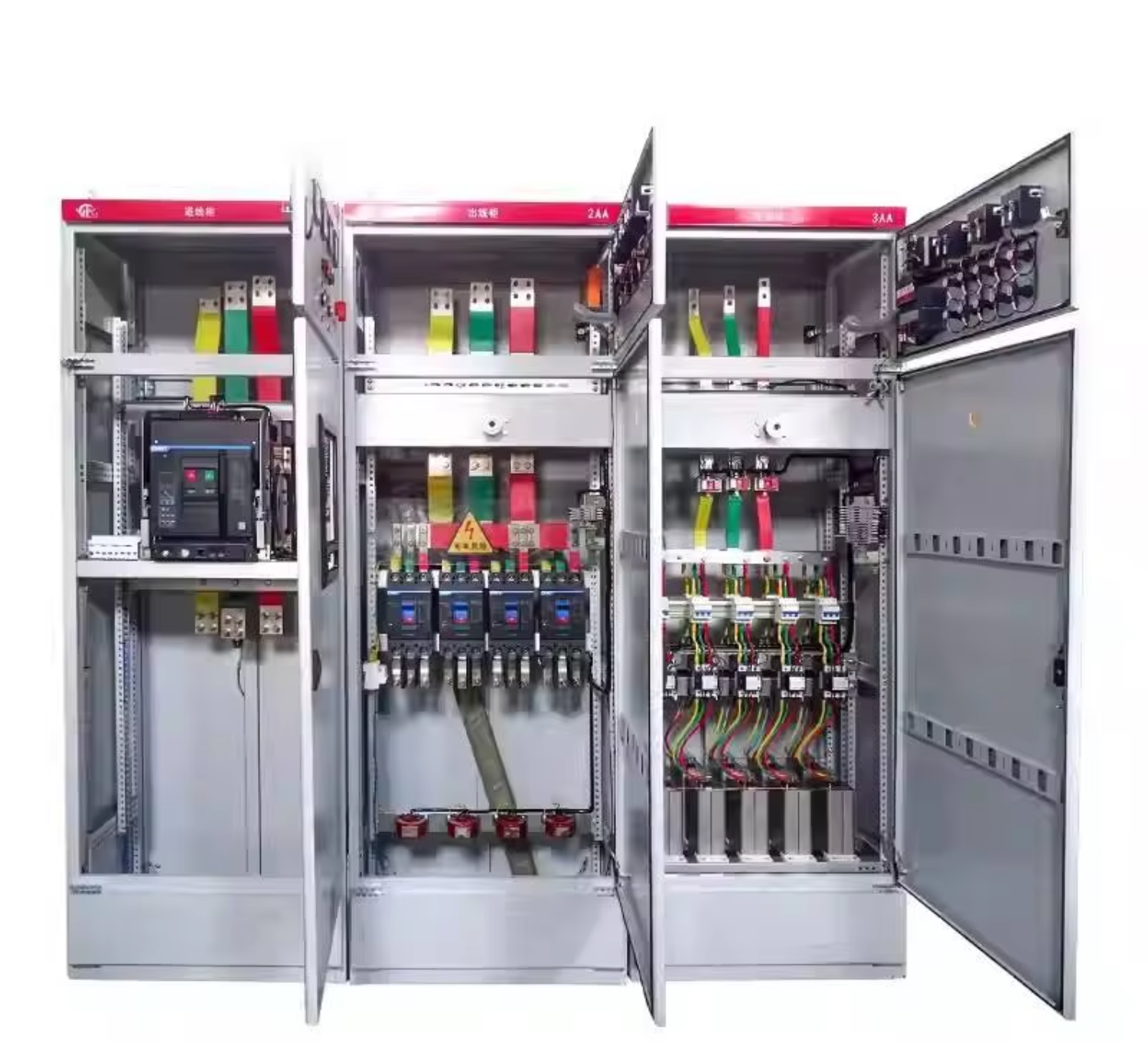

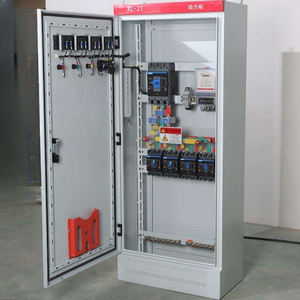

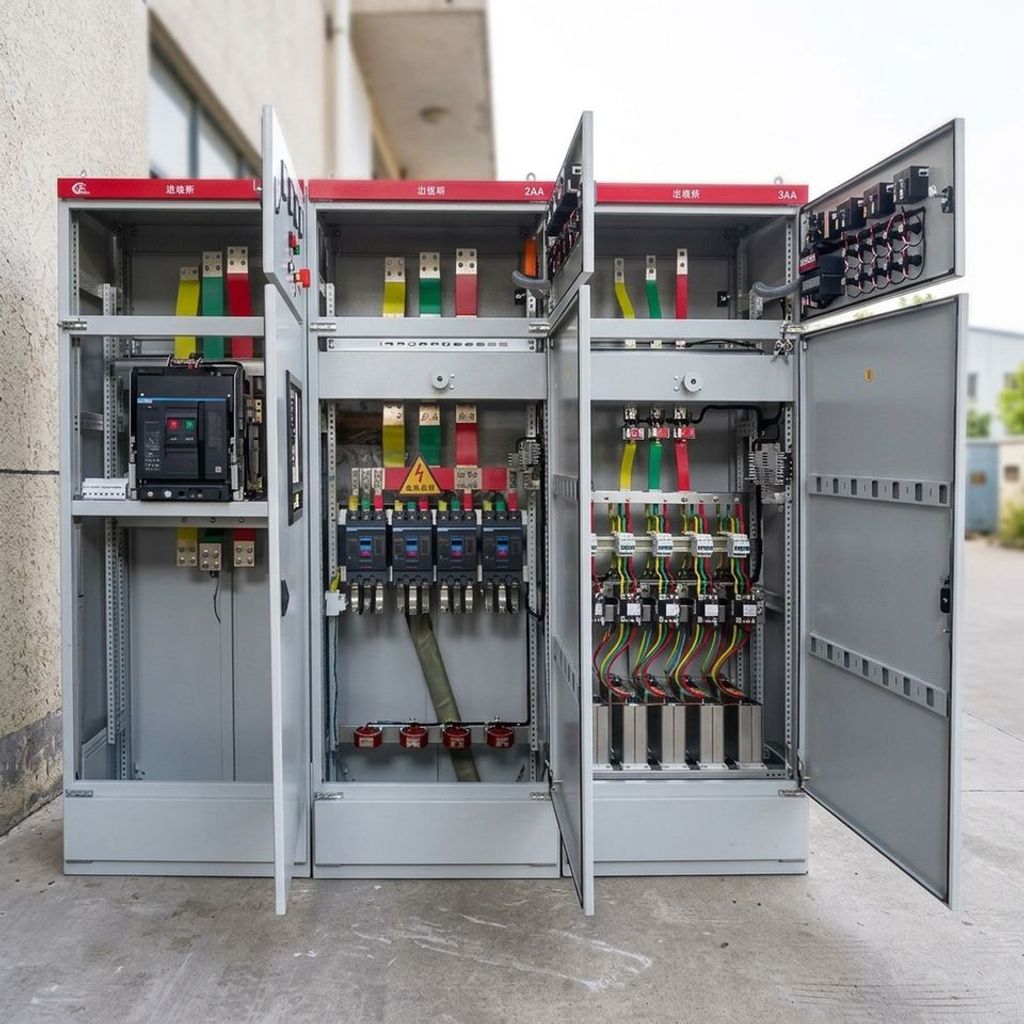

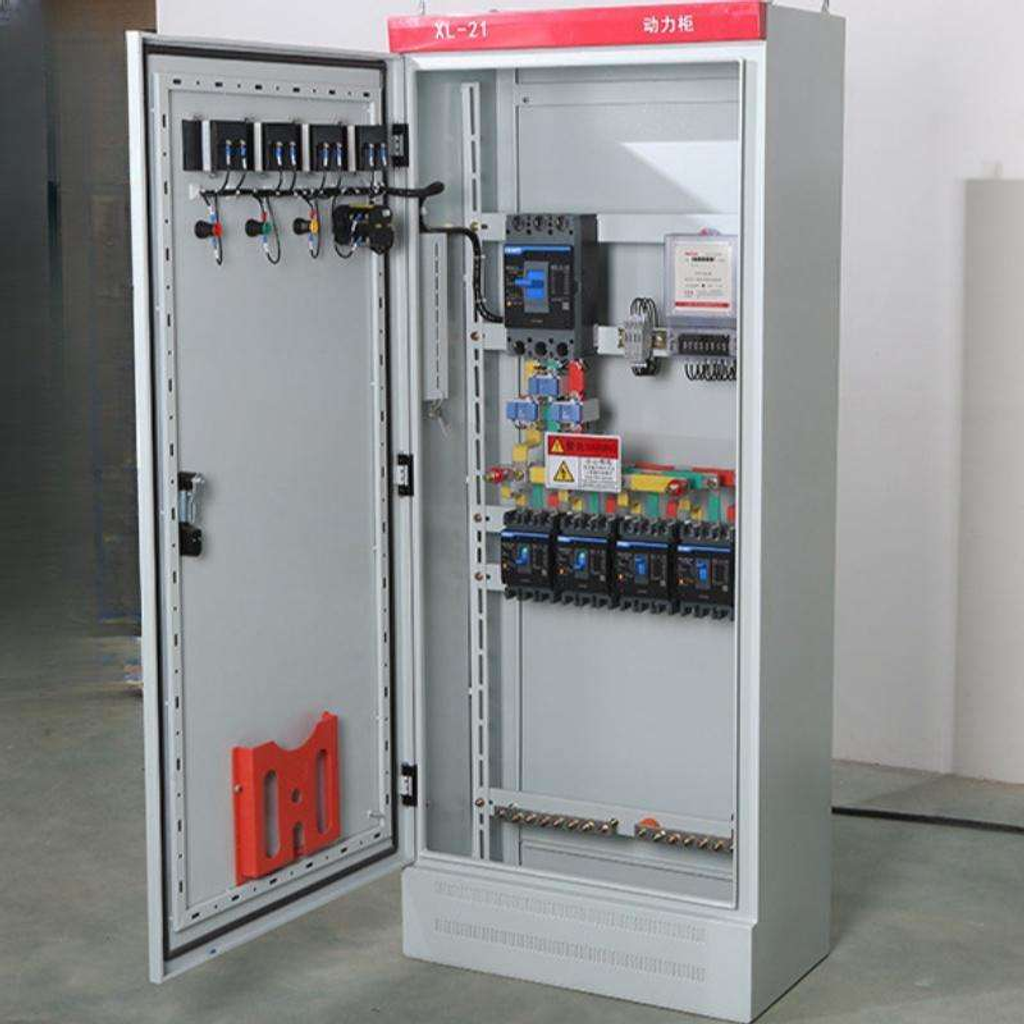

AC Switchgear Control Panel Board 400A~100A Industrial Low Voltage 630A 400-1000V IP40 Waterproof Metal Electrical Cabinet

AC Switchgear

compact GIS cabinet adopts modular design integrating fixed & expandable modules, suitable for terminal grid nodes, distributionun rooms and box substations. It features compact layout, safety, long service life and maintenance-free operation.

Specification

- Rated Voltage: 400-1000V AC
- Rated Current: 100A-630A
- Frequency: 50Hz / 60Hz
- Phase: Three-phase
- Protection Degree: IP40
- Structure: Fixed type
- Installation: Indoor use
- Cabinet Material: Cold-rolled steel with powder-coated finish
- Busbar Material: High-purity copper bar (tinned optional)

Key Configurations

- Compact metal cabinet with IP40 protection for dust-proof

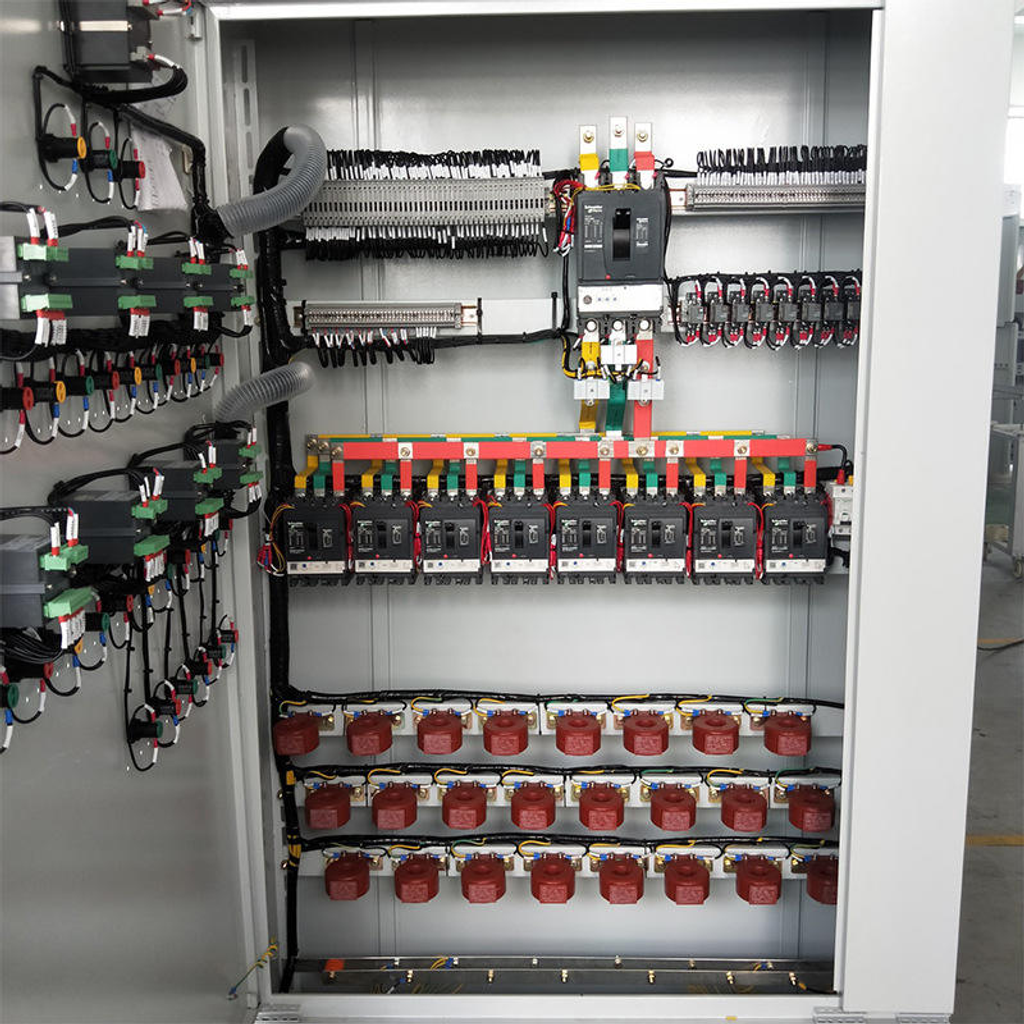

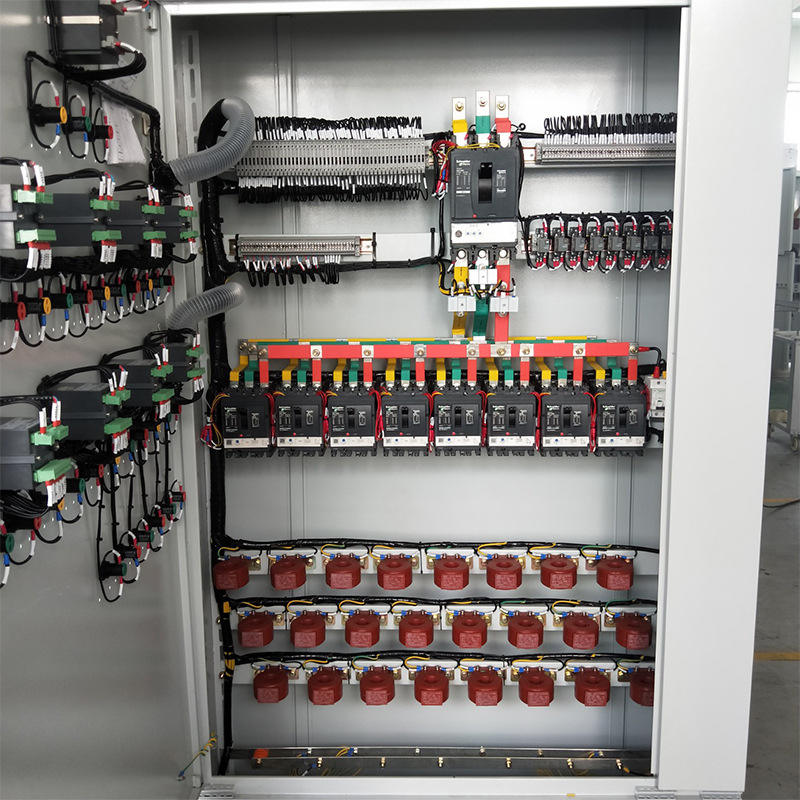

- Complete internal components for power distribution & overload protection
- Stable three-phase AC power distribution for factory, workshop, commercial projects
- Custom-made circuit layout available
Customization: Customer-tailored available, OEM supported
Standard:IEC certified

NOTE

All prices displayed are for reference only.
The final price depends on capacity, voltage
grade, cabinet material and internal configuration.
Please contact our sales for accurate quotation
