10kv Dry Transformer 200kVA 315kVA 630 kVA Three-Phase Dry Type Distribution Transformer for Indoor Use

Dry-Transformer:

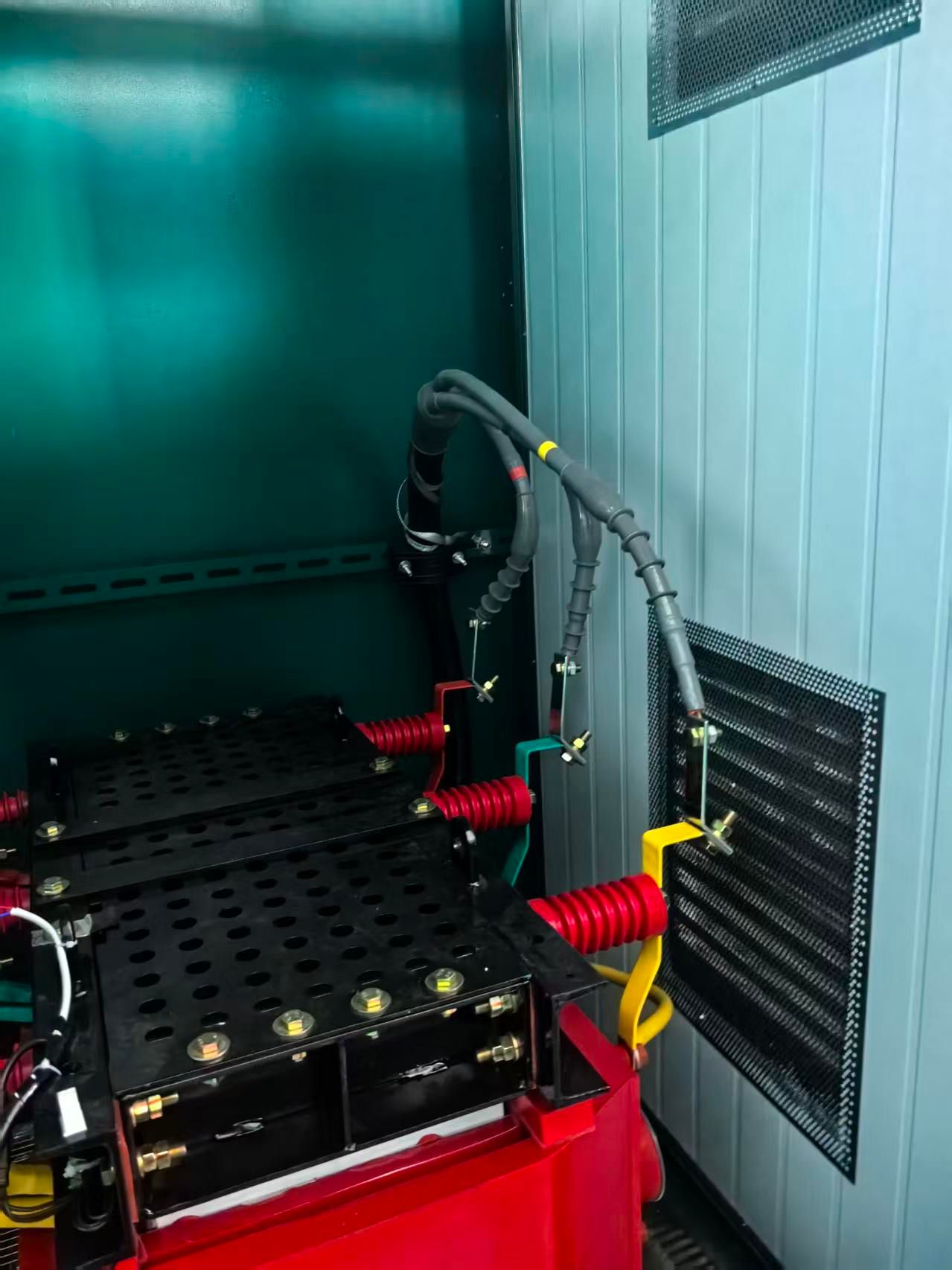

650kVA three-phase dry type transformer, 6kV primary / 0.4kV secondary, rated voltage 13.8kV/400V, 50Hz frequency. Adopts full copper winding, ultra-low no-load & load loss, safe non-encapsulated ventilation design for power distribution station.

Technical Parameters

- Rated Capacity: 650kVA, 3 Phase
- Frequency: 50Hz
- Voltage Ratio: 6kV/13.8kV Primary, 0.4kV Secondary
- Tap range: ±5% adjustable taps
- Insulation Class: F
- Cooling: AN natural air cooling
- Low no-load & load loss design

- Winding: 100% pure copper wire
- Core: High permeability cold rolled silicon steel sheet
- Insulation: High temperature resistant composite insulating material
- Base frame: Hot-dip galvanized carbon steel
- Terminal: Tin-plated copper terminal
- Optional enclosure: Powder coated steel sheet

NOTE:

All prices displayed are for reference only.
The final price depends on capacity, voltage
grade, cabinet material and internal configuration.
Please contact our sales for accurate quotation.
